HL63PB8-9

Hi-Lok™ Rivet Pin

email this to someone

Description:

Flush shear head, oversized for hl19, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 200 ships same day if ordered before 4pm EST

HL63PB8-9 Price:	buy now $3.58 Each
Quantity: Pre-packaged bag qty: 10 ea
* Sold in increments of 10

Add item to quote

HL63PB8-9 Datasheet Features and Specification

Thread Class:

Thread Direction:

Right-hand

Fastener Length:

0.947 inches minimum and 0.967 inches maximum

Head Style:

Flush countersunk

Width Between Flats:

0.0947 inches minimum and 0.0967 inches maximum

Shank Diameter:

0.2641 inches minimum and 0.2651 inches maximum

Shank Style:

Pin-rivet, straight, threaded

Head Major Diameter:

0.3948 inches maximum

Lubrication:

Cetyl alcohol, spec 305, hi-shear corp

Grip Length:

0.567 inches maximum

Thready Qty Per Inch (tpi):

Min. Tensile Strength (psi):

160000 pounds per square inch

Thread Size:

0.250 inches

Shear Strength:

95000 single pounds per square inch

Countersink Angle:

100.0 degrees nominal

Material:

Steel comp e4340 overall or steel comp 4140 overall or steel comp 8740 overall

Material Specification:

Mil-s-5000 mil spec 1st material response overall or mil-s-5626 mil spec 2nd material response overall or mil-s-6049 mil spec 3rd material response overall

Surface Treatment:

Cadmium overall

Surface Treatment Specification:

Qq-p-416 type 1 class 2 fed spec single treatment response overall

Thread Series Designator:

Unjf

Additional Information

SKU / Model:	HL63PB89
NSN:	5320-01-177-9796
FSC:	Rivets / 5320
Product Series:	HL63PB8
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	10
ECCN:	EAR99
National Motor Freight:	106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version HL63PB8-9_Military-Fasteners-com.pdf

* report an issue on this page

More HL63PB8 pin-rivets

HL63PB8-8

Flush shear head, oversized for hl19, alloy steel cadmium plated

HL63PB8-7

Flush shear head, oversized for hl19, alloy steel cadmium plated, 5320-00-426-5001

HL63PB8-6

flush shear head, oversized for hl19, alloy steel cadmium plated

HL63PB8-5

flush shear head, oversized for hl19, alloy steel cadmium plated

HL63PB8-4

100°, flush shear head - oversized for hl19 - alloy steel cadmium plated

HL63PB8-3

flush shear head oversized for hl19 alloy steel cadmium plated

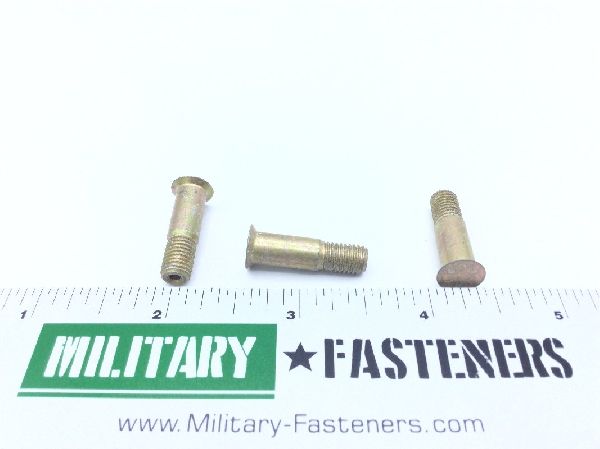

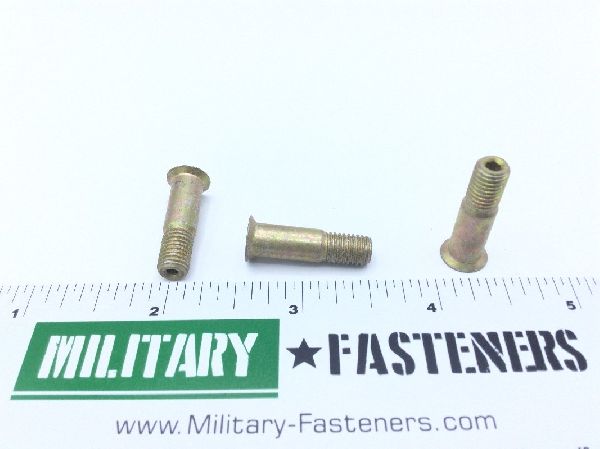

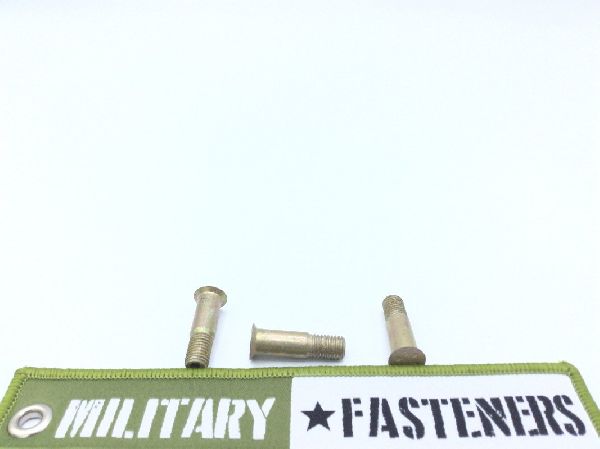

Product Image Gallery
