HL86W6

Hi-Lok Collar

email this to someone
Description:

tension application, 303 stainless steel collar, steel washer, both cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge
HL86W6
HL86W6
HL86W6
HL86W6
Add to Cart Up to qty 160 ships same day if ordered before 4pm EST
HL86W6 Price:
buy now
$13.25 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL86W6 Datasheet Features and Specification

Collar Inside Diameter:
Between 0.192 inches and 0.200 inches
Collar Outside Diameter:
Between 0.303 inches and 0.307 inches
Collarheight:
Between 0.437 inches and 0.457 inches
Collar Style:
Threaded (break off) type
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Material:
Steel comp 301 washer or steel comp 302b washer or steel comp 302 washer or steel comp 303 washer or steel comp 303se washer or steel comp 304 washer or steel comp 304l washer or steel comp 305 washer or steel comp 308 washer or steel comp 309 washer or steel comp 309s washer or steel comp 310 washer or steel comp 310s washer or steel comp 314 washer or steel comp 316 washer or steel comp 316l washer or steel comp 317 washer or steel comp 321 washer or steel comp 347 washer or steel comp 348 washer or steel
Material:
Steel comp 303se body
Thread Size:
0.190 inches
Surface Treatment:
Cadmium
Surface Treatment Specification:
Class 2 federal specification single treatment response type 1 qq-p-416
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
32
Thread Series Designator:
Unjf (fine thread with external controlled root radius)

Additional Information

SKU / Model: HL86W6
NSN: 5320-00-004-4035
FSC: Rivets / 5320
Product Series: HL86W
Pack Weight (Approx.) 0.000 lb
Minimum Qty (MOQ): 5
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL86W6_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

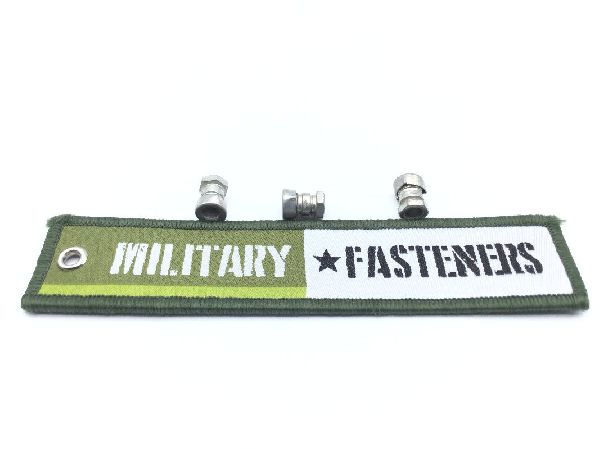

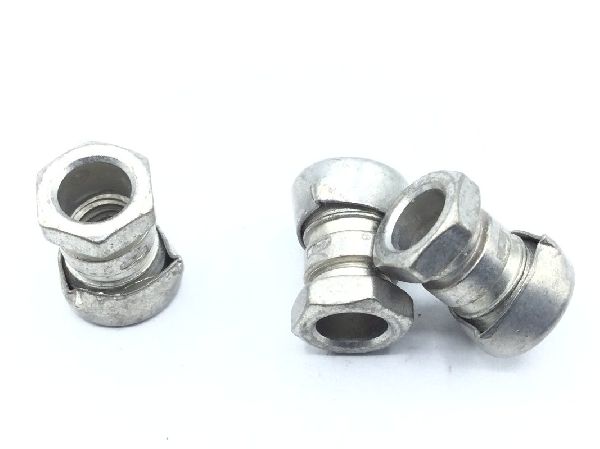

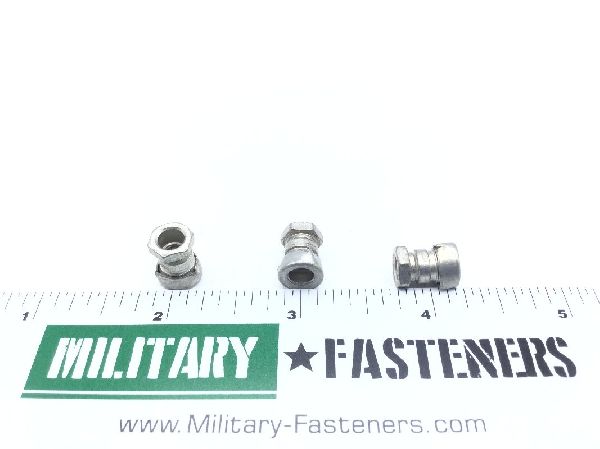

Product Image Gallery
