HL84-12

Hi-Lok™ Collar

email this to someone
Description:

Thread Size: 3/8", fine thread, blue color, Hi-Lok, HL84 series collar

* Manufacturer certifications are shipped with your order FREE of charge
HL84-12
HL84-12
HL84-12
HL84-12
HL84-12
HL84-12
Add to Cart Up to qty 500 ships same day if ordered before 4pm EST
HL84-12 Price:
buy now
$9.25 Each
Quantity:
Pre-packaged bag qty: 5 ea
* Sold in increments of 5
Add item to quote

HL84-12 Datasheet Features and Specification

Surface Treatment Specification:
Mil-a-8625 military specification single treatment response
Surface Treatment:
Anodize
Special Features:
Color blue
Material Specification:
Qq-a-430 federal specification single material response or qq-a-225/6 federal specification single material response
Material:
Aluminum alloy 2024
Lubrication:
Hi-shear corp specification 305 cetyl alcohol
Identification Code Color:
Blue
Heat Treatment:
T-6 solution heat treated
Collarheight:
Between 0.724 inches and 0.744 inches
Collar Style:
Threaded (break off) type
Collar Outside Diameter:
Between 0.680 inches and 0.690 inches
Collar Inside Diameter:
Between 0.410 inches and 0.416 inches
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
24
Thread Series Designator:
Unjf (fine thread with external controlled root radius)
Thread Size:
0.375 inches
Quick Specs
Thread Qty 24
Thread Series UNJF
Thread Class 3B
Material Aluminum

Additional Information

SKU / Model: HL8412
NSN: 5320-01-116-6672
FSC: Rivets / 5320
Product Series: HL84
Pack Weight (Approx.) 0.049 lb
Minimum Qty (MOQ): 5
Schedule B: 7616.10.1000
ECCN: EAR99
National Motor Freight: 013630, Alum Rivets
Download PDF Version
HL84-12_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

More HL84 collars

HL84-14

Thread Size: 3/8"

HL84-10

Thread Size: 1/4in.

Product Image Gallery

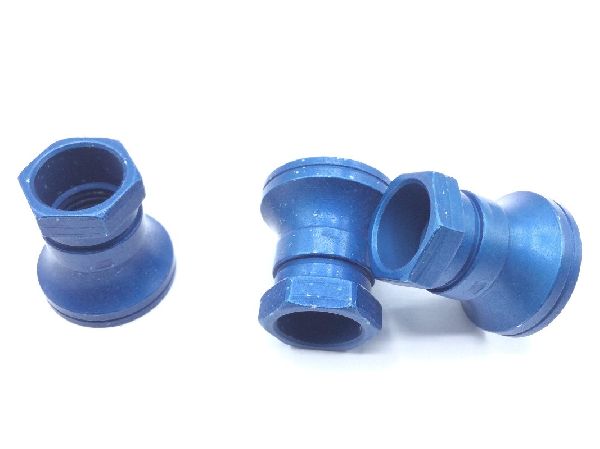

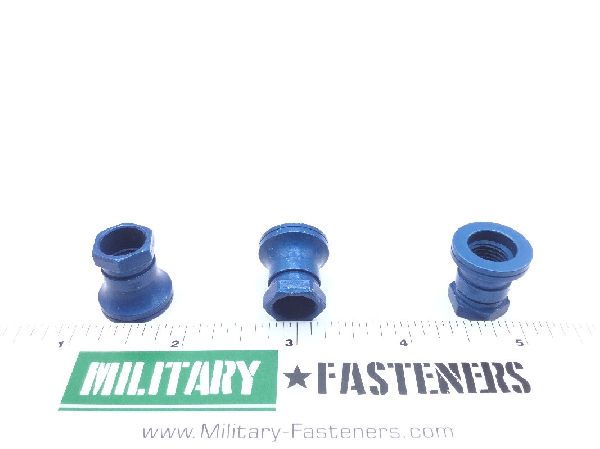

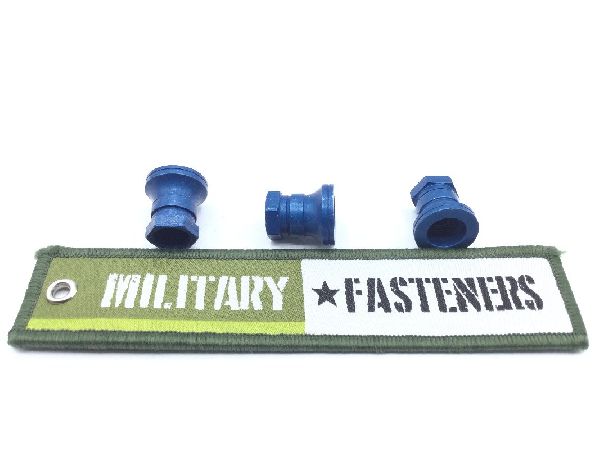

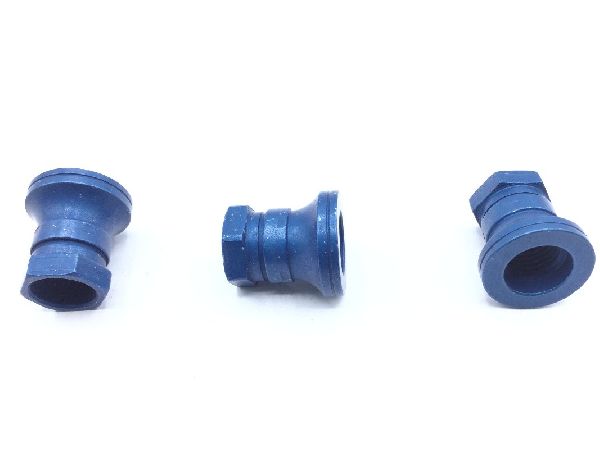

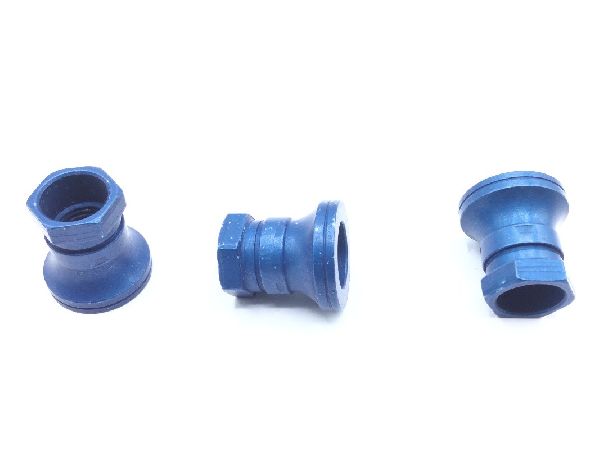

Product code HL84-12
